TS2310M-16S8GC4X от Telsar – это управляемый гигабитный коммутатор 3-го уровня (L3), который обеспечивает высокую производительность, статическую и динамическую маршрутизацию 3-го уровня, протокол RIP (Routing Information Protocol – Протокол информации о маршрутизации) и OSPF (Open Shortest Path First – Открытый протокол предпочтения кратчайшего пути). Обладая коммутационной способностью 128 Гбит/с и гибкими и высокопроизводительными возможностями восходящего канала 4*1G/2.5G/Гбит/с, TS2310M-16S8GC4X обеспечивает комплексное сквозное качество обслуживания (QoS), а также гибкое и разностороннее управление и настройки безопасности, что позволяет удовлетворить требования, предъявляемые к высокой скорости, безопасности и интеллектуальным возможностям сетей малых и средних предприятий по разумной цене. Мощные функции WRR (Weighted Round Robin – Циклический взвешенный алгоритм) и сетевой безопасности также позволяют TS2310M-16S8GC4X эффективно управлять трафиком данных для интернет-провайдеров и корпоративных VoIP-приложений, потокового видео и многоадресной рассылки.
|
Модель |
TS2310M-16S8GC4X |
|||
|
Interface |
1G/2.5G/10GFiberports |
100/1000 Fiberports |
Gigabit Combo |
|
|
4 |
16 |
8 |
||
|
Ethernet |
4*1G/2.5G/10G SFP+ slots 16*100/1000M SFP ports 8*1G SFP/RJ45 COMBO ports |
|||
|
CPU |
Marvell AC5 series 1.2GHz |
|||
|
Size of RAM |
1GB |
|||
|
Size of Flash |
512MB |
|||
|
Switch chip model |
Marvell AC5 series |
|||
|
Management port |
1*RJ45 Console port (115200,8,N,1) |
|||
|
Standard |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE 802.3ae 10Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP |
|||
|
LED Indicators |
||||
|
PWR (Power indicator) |
Off: the device is power off or failed |
On: the device power on is normal |
||
|
SYS (System status indicator) |
Blinking: device initialization |
On: device on normal operation |
||
|
USB (USB status indicator) |
Off: USB flash drive not insert or not detected by device |
|||
|
On: USB flash drive is detected by device |
||||
|
Blinking: the device is reading and writing the data from USB flash drive |
||||
|
1-8 (Copper ports indicators) Green |
Off: ports link down |
|||
|
On: ports link up |
||||
|
Blinking: data on TX/RX |
||||
|
1-8 (Copper speed indicators) Yellow |
Off: ports on 10/100M |
|||
|
On: ports on 1000M |
||||
|
1-8(Fiber ports indicators) Green |
Off: ports link down |
|||
|
On: ports link up |
||||
|
Blinking: data on TX/RX |
||||
|
9-28(Fiber ports indicators) Green |
Off: ports link down |
|||
|
On: ports link up |
||||
|
Blinking: data on TX/RX |
||||
|
Power parameter |
||||
|
Input voltage |
1* AC 100-240V input on default 1* DC 36-72V input optional 2* AC 100-240V input optional 1* AC 100-240V input + 1* DC 36-72V input optional |
|||
|
Total power consumption |
Full loading ≤ 40W |
|||
|
Over-current protection |
Support |
|||
|
Layer 2 switching |
||||
|
Port aggregation |
Support GE port aggregation Support 2.5GE aggregation Support 10GE aggregation Support static aggregation Support LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group |
|||
|
Port features |
Support IEEE802.3x flow control Support interface counters Support port isolation Port mirroring (One-to-One, Many-to-One) Support loop detection (Port-based; VLAN-based) Support broadcast storm suppression |
|||
|
VLAN |
IEEE802.1Q tagged VLAN Mac based VLAN IP based VLAN Protocol based VLAN Voice VLAN, specially divide VLAN for user voice data flow Private VLAN, divide a VLAN broadcast domain into multiple subdomains to form a double-layer VLAN structure VLAN range: 1-4094 Support access mode/trunk mode/hybrid mode |
|||
|
Mac-address table management |
Support static Mac-address management Support dynamic Mac-address Management Support filtering Mac-address Support MAC limit based on port and VLAN Support MAC flapping based on port and VLAN 16K Mac-address table size |
|||
|
GVRP |
Normal mode Fixed mode Forbidden mode |
|||
|
QinQ |
Port-based QinQ VLAN-based QinQ VLAN mapping Flow-based QinQ |
|||
|
LLDP |
Link Layer Discovery Protocol Med |
|||
|
SPAN |
Number of Sessions: 7 Many-to-one |
|||
|
RSPAN |
Remote Switch Port Analyzer |
|||
|
MSTP |
802.1D STP 802.1W RSTP 802.1S MSTP BPDU Guard Number of Single Ring Device Connections: 20 |
|||
|
ERPS G.8032 |
Major ring Sub ring Recovery time ≤20ms Number of Single Ring Device Connections: No limit |
|||
|
QoS |
QoS Class, Remarking Support SP, WRR Queue Scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Egress port-queue shaper Policy-based QoS Port Queue Numbers: 8 |
|||
|
DHCPv4 Snooping |
DHCP snooping trust port DHCP snooping option-82 DHCP snooping circuit-id and remote-id customized |
|||
|
L2 Multicast |
||||
|
IGMP |
IGMP v1, v2, v3 |
|||
|
IGMP Snooping |
Internet Group Management Protocol Snooping Fast Leave Multicast Table Size: 1K |
|||
|
PIM-SM |
Protocol Independent Multicast-Sparse Mode |
|||
|
Security features |
||||
|
ACL |
IP Standard ACL IP Extended ACL MAC extend ACL IPv6 ACL Time Range ACL apply on VLAN ACL entries, include input and output |
|||
|
802.1x |
Port access control Mac-address access control RADIUS server |
|||
|
Port-security |
Port-security |
|||
|
IP source guard |
IP Source Guard, Port-based IP/Mac Binding Access |
|||
|
ARP-check |
Support ARP-check and ARP packet filtering for illegal users |
|||
|
DAI |
Dynamic ARP Inspection |
|||
|
Anti-gateway ARP Spoofing |
Prevent Gateway ARP Spoofing |
|||
|
Ddos |
Ddos attack protection |
|||
|
Access control |
Support Telnet/SSH/HTTP/HTTPS user access control |
|||
|
AAA |
RADIUS authentication access switch TACACS authentication access switch Authorization |
|||
|
Reliability |
||||
|
Loop Detect |
Loop detect, based on port or VLAN |
|||
|
EFM |
The Ethernet in the first mile, 802.3ah |
|||
|
Management & Maintenance functions |
||||
|
Dual Stack |
IPv4 and IPv6 Dual Stack Management |
|||
|
System Log Management |
Syslog Level 7 to 0 Corresponding Debug/Info/Notice/Warning/ Err/ Critical/ Alert Support connecting up to 3 Servers For IPv4 and IPv6 |
|||
|
User Management |
Support password protection, support MD5/SHA256/SHA512 algorithm Local Management of User Privilege Remote authorization by RADIUS or TARCAS Enable privilege protection User password complexity requirements User login fail protection User Privilege Level 0 to 15 |
|||
|
Login Service Management |
Up to 8 users online simultaneously Access control based on IPv4 or IPv6 ACL |
|||
|
Firmware Management |
Firmware upgraded by WEB Firmware upgraded by CLI Dual partition |
|||
|
Web Management |
Web Management Support HTTP V1.1 Support HTTPS For IPv4 and IPv6 |
|||
|
CLI management |
Console/Telnet command line management |
|||
|
Fault Detection |
Ping/Traceroute, For IPv4 and IPv6 Optical transceiver DDM One click fault information collection Cable detection |
|||
|
DNS |
Domain Name System |
|||
|
NTP |
Network Time Protocol, For IPv4 and IPv6 Support domain name configuration |
|||
|
Configuration Import /Export |
FTP/TFTP based remote configuration import and export |
|||
|
sFlow |
Sampled flow |
|||
|
SNMP |
Version SNMPV2C/V3 |
|||
|
MQTT |
Message Queuing Telemetry Transport |
|||
|
RMON |
Support RMON(Remote Monitoring) alarm |
|||
|
Dual partition management |
Support dual partition switching |
|||
|
Application Protocol Functions |
||||
|
Telnet server |
Support telnet server for IPv4 and IPv6 |
|||
|
Telnet client |
Support telnet client for IPv4 and IPv6 |
|||
|
SCP (Secure Copy Protocol) |
SCP client/server for IPv4 and IPv6 |
|||
|
SFTP |
sftp client/server for IPv4 and IPv6 |
|||
|
SSH server |
Support login based on user password-SSH2, support IPv4, IPv6 Support public key-based login |
|||
|
TACACS |
Support TACACS (the terminal access controller accesses the control system) |
|||
|
TFTP |
Support TFTP Client |
|||
|
Layer 3 features |
||||
|
Static Route |
Support VLAN interface and route port IPv4 static routing table entry configuration ARP dynamic learning and static configuration IPv6 static routing table entry configuration Neighbor discovery and static configuration Routing prefix table size 4k for IPv4, for IPv6 divide by 4 |
|||
|
DHCPv4 Client |
Dynamic host configuration protocol for IPv4 |
|||
|
DHCPv6 Client |
Dynamic host configuration protocol for IPv6 |
|||
|
DHCPv4 Relay |
DHCP Relay for IPv4 |
|||
|
DHCPv4 Server |
DHCP Server for IPv4 |
|||
|
ECMP |
Support ECMP (Equal-cost multi-path routing) Support the configuration of ECMP Max next-hop Support capacity balanced configuration |
|||
|
Route policy |
IPv4 prefix-list |
|||
|
VRRP |
Virtual Router Redundancy Protocol |
|||
|
Routing Protocol Specification |
||||
|
RIP |
RIPv1/v2 |
|||
|
OSPFv2 |
OSPFv2 |
|||
|
BGP4 |
BGP4 BGP Support Routing Recursive ECMP Support to view the number of neighbors and up/down state |
|||
|
IS-IS |
IS-ISv4 |
|||
|
Routing entries |
13K |
|||
|
Switching features |
||||
|
Switching capacity |
128Gbps |
|||
|
Packet forwarding rate |
95.232Mpps |
|||
|
MAC address table |
16K |
|||
|
VLAN |
4K |
|||
|
Buffer |
12Mbit |
|||
|
Forwarding delay |
<5us |
|||
|
Jumbo Frame |
Support 10Kbytes |
|||
|
MDX/MIDX |
Support |
|||
|
Watchdog |
Support |
|||
|
Mechanical structure |
||||
|
Installation method |
Desktop; Rack-mount |
|||
|

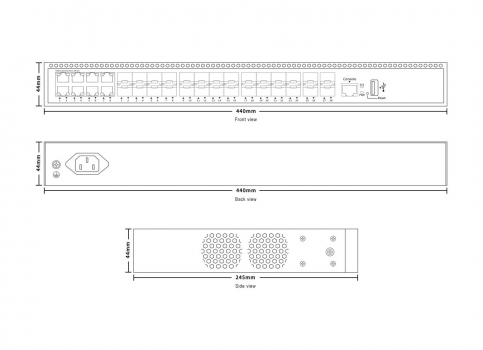

Dimension(W*D*H)mm |
440*245*44mm |
|||
|
Weight |
3.70kg |
|||
|
Operating environment |
||||
|
Operating temperature |
0℃~+50℃ |
|||
|
Storage/transportation temperature |
-10℃~+70℃ |
|||
|
Relative humidity |
Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH |
|||
|
Protection |
Surge protection of power: 4KV Surge protection of Ethernet ports: 4KV ESD: Contact 6kV, Air 8kV |
|||
|
Certification |
CCC/CE/RoHS |
|||
|
MTBF |
＞100,000 hours |
|||
|
Warranty |
3 years |
|||
